72 CELL MONOCRYSTALLINE MODULE
HIGH RETURN ON INVESTMENT
- Excellent for large-scale installations.
- High power reduces installation time and BOS costs.
- 1000/1500 VDC IEC certified.
HIGHER OUTPUT POWER PER SURFACE
- High-quality monocrystalline PERC G1 cells.
EXCELLENT DURABILITY RELIABILITY PERFORMANCE
- Excellent PID resistance.
- All modules have to pass electroluminescence inspection.
EXCELLENT WITHSTAND CHALLENGING ENVIRONMENTAL CONDITIONS
- 35mm hail stones at 97km/h.
- 2400Pa wind load and 5400Pa snow load.
| Module dimension |
1991x1004x38mm |
|---|---|
| Number of cells |
72 |
| Weight |
23kg |
| Cell type |
PERC Monocrystaline M3 cells |
| Glass |
3.2mm thicknees fully templated - ARC |
| Backsheet | |
| Frame |
Andized Aluminum Alloy |
| Jbox |
IP67 Rated, 3 diodes |
| Cables |
4mm2 (1500VDC) with cable lengh 100cm |
| Connection |
QC4.10 (1500VDC) |
| 385 | 390 | 395 | 400 | |||
|---|---|---|---|---|---|---|
| STC (Spectrum of AM 1.5; Irradiance 1000 W/m2; Cell temperature 25°C) | Maximum rated power (Pmax) (0~+3%) | W | 385.00 | 390.00 | 395.00 | 400.00 |
| Maximum power voltage (Vmp) | V | 40.39 | 40.53 | 40.75 | 41.05 | |
| Open circuit voltage (Voc) | V | 47.66 | 47.80 | 48.02 | 48.35 | |
| Maximum power current (Imp) | A | 9.55 | 9.61 | 9.67 | 9.73 | |
| Short circuit current (Isc) | A | 10.02 | 10.07 | 10.12 | 10.17 | |
| Module efficiency | % | 19.26 | 19.51 | 19.76 | 20.01 | |
| NOCT (Spectrum of AM 1.5; Irradiance 800 W/m2; Cell temperatue 20°C and wind speed 1m/s) | Maximum rated power (Pmax) | W | 285.00 | 288.00 | 291.00 | 294.00 |
| Maximum power voltage (Vmp) | V | 37.52 | 37.65 | 37.85 | 38.05 | |
| Open circuit voltage (Voc) | V | 44.13 | 44.26 | 44.46 | 44.71 | |
| Maximum power current (Imp) | A | 7.64 | 7.68 | 7.73 | 7.79 | |
| Short circuit current (Isc) | A | 8.01 | 8.05 | 8.09 | 8.13 |
Maximum Ratings
| Operational temperature |
-40°C to 85°C |
|---|---|
| Maximum system voltage |
1500VDC |
| Maximum series fuse rating |
15A |
Temperature Characteristics
| Temperature coefficient of PMAX |
-0.390%/ºC |
|---|---|
| Temperature coefficient of VOC |
-0.300%/ºC |
| Temperature coefficient of ISC |
0.060%/ºC |
| Nomial Opeating Cell Temperature (NOCT) |
45ºC |

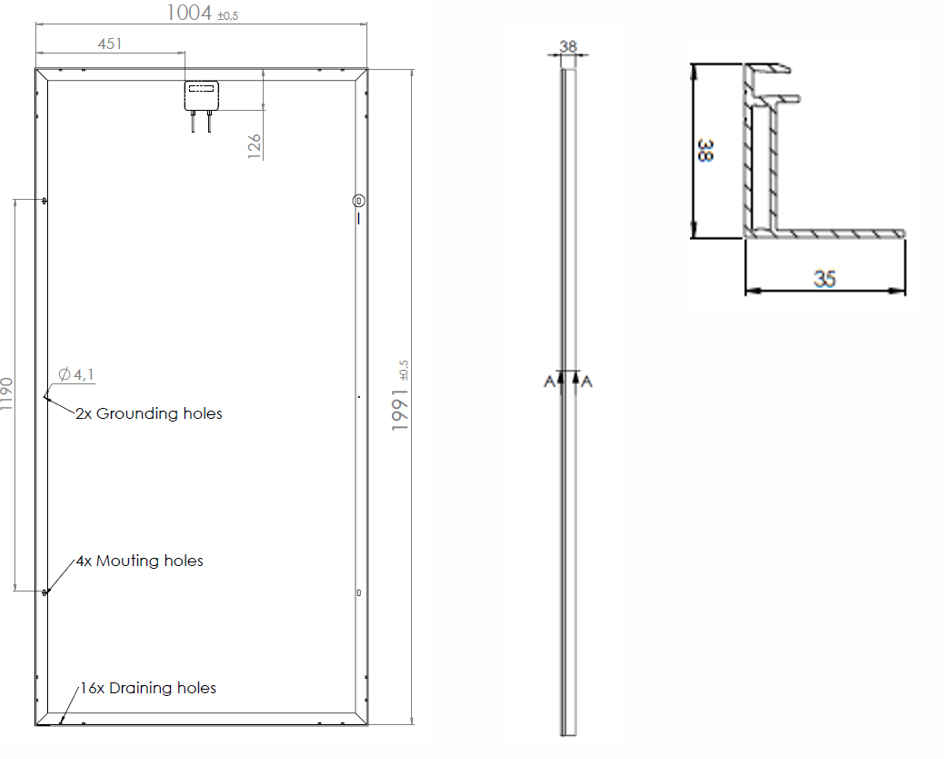

Engineering Drawing

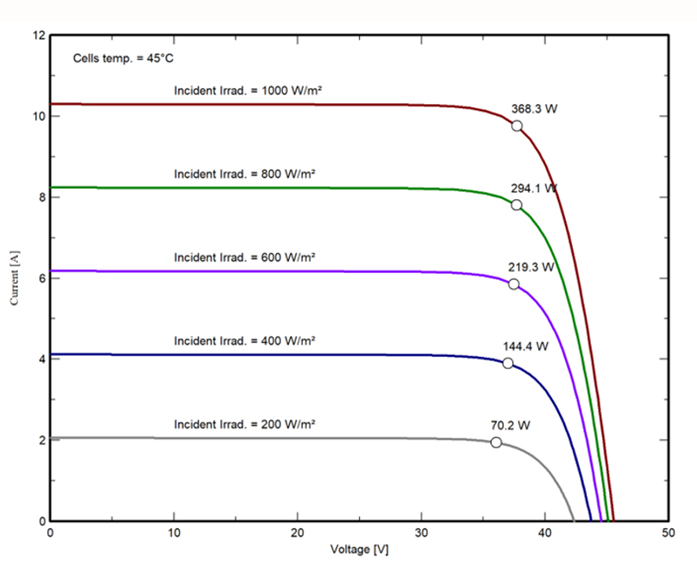

Current-Voltage Curve

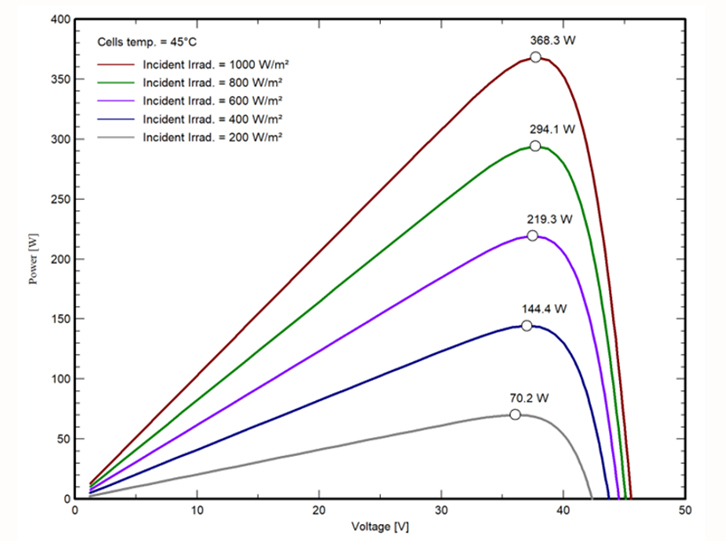

Power-Voltage Curve
Management Certificates
| ISO 9001:2015 |
| ISO 14001:2015 |
| ISO 45001:2018 |
Product Certificates
| IEC 61215:2021 |
| IEC 61730:2016 |
| IEC 61701 SL6 (SALT MIST) |
| IEC 62716 (AMMONIA) |
| IEC 60068-2-68 (SAND & DUST) |
